ZEISS MMZ G
Portalmessgerät für große Werkstücke
Großportalgeräte der Baureihe ZEISS MMZ G erfüllen höchste Ansprüche: Sie bieten das größte Messvolumen aller Messgeräte von ZEISS bei unübertroffenen Genauigkeiten. Damit eignet sich ZEISS MMZ G ideal zur Prüfung komplexer, sehr großer und vor allem eng tolerierter Werkstücke.
-

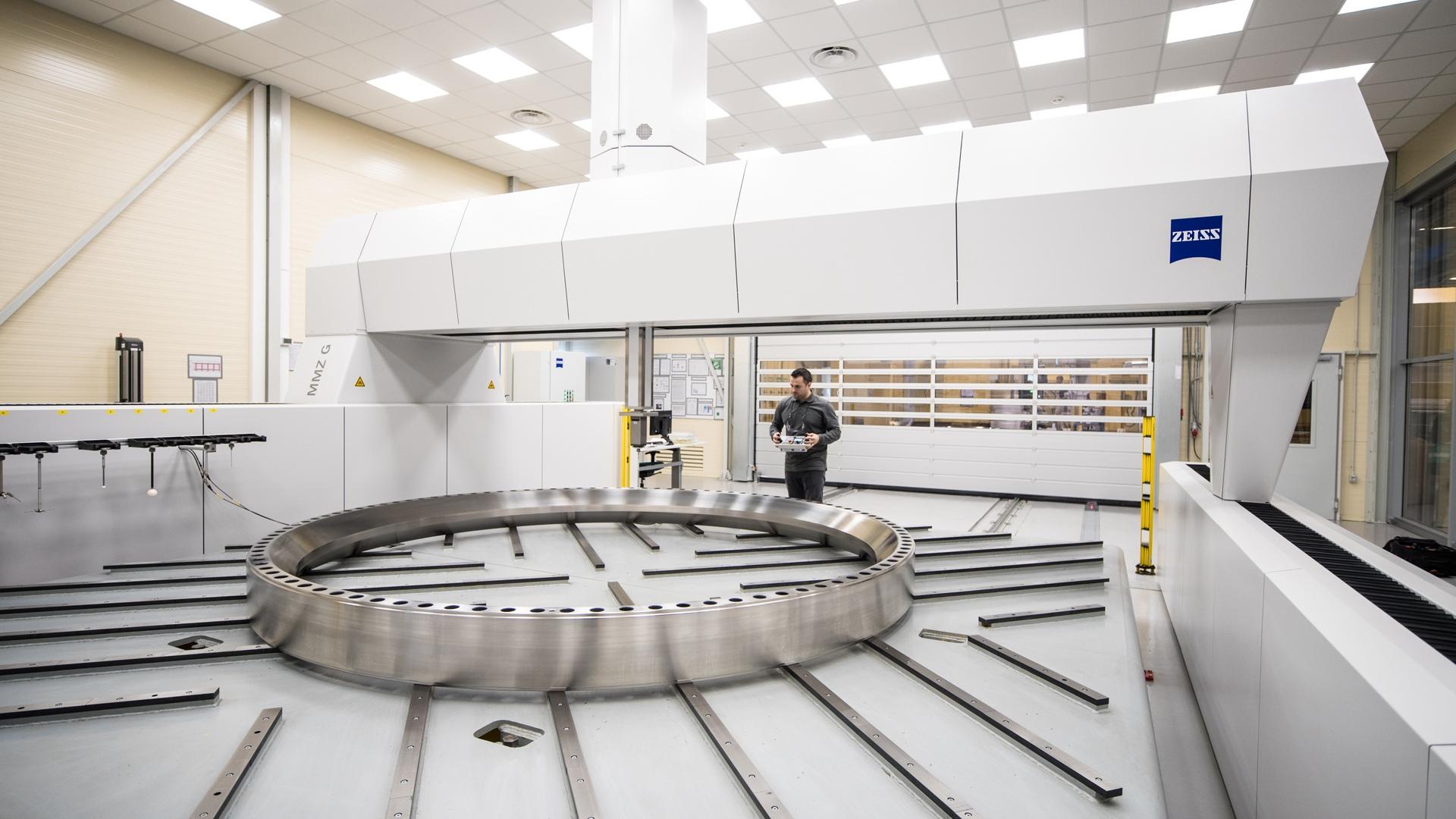

Prüfung sehr großer Werkstücke
-
ZEISS MMZ G bei PMT Machines Limited
![]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-large-bridge-type-measuring-maschine.jpg/_jcr_content/renditions/original.image_file.100.56.0,100,1920,1180.file/zeiss-large-bridge-type-measuring-maschine.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-large-bridge-type-measuring-maschine.jpg/_jcr_content/renditions/original.image_file.360.203.0,100,1920,1180.file/zeiss-large-bridge-type-measuring-maschine.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-large-bridge-type-measuring-maschine.jpg/_jcr_content/renditions/original.image_file.768.432.0,100,1920,1180.file/zeiss-large-bridge-type-measuring-maschine.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-large-bridge-type-measuring-maschine.jpg/_jcr_content/renditions/original.image_file.1024.576.0,100,1920,1180.file/zeiss-large-bridge-type-measuring-maschine.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-large-bridge-type-measuring-maschine.jpg/_jcr_content/renditions/original.image_file.1280.720.0,100,1920,1180.file/zeiss-large-bridge-type-measuring-maschine.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-large-bridge-type-measuring-maschine.jpg/_jcr_content/renditions/original.image_file.1440.810.0,100,1920,1180.file/zeiss-large-bridge-type-measuring-maschine.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-large-bridge-type-measuring-maschine.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,100,1920,1180.file/zeiss-large-bridge-type-measuring-maschine.jpg"})
![]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-ppt-measurement-heavy-part.jpg/_jcr_content/renditions/original.image_file.100.56.0,180,1920,1260.file/zeiss-mmz-g-ppt-measurement-heavy-part.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-ppt-measurement-heavy-part.jpg/_jcr_content/renditions/original.image_file.360.203.0,180,1920,1260.file/zeiss-mmz-g-ppt-measurement-heavy-part.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-ppt-measurement-heavy-part.jpg/_jcr_content/renditions/original.image_file.768.432.0,180,1920,1260.file/zeiss-mmz-g-ppt-measurement-heavy-part.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-ppt-measurement-heavy-part.jpg/_jcr_content/renditions/original.image_file.1024.576.0,180,1920,1260.file/zeiss-mmz-g-ppt-measurement-heavy-part.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-ppt-measurement-heavy-part.jpg/_jcr_content/renditions/original.image_file.1280.720.0,180,1920,1260.file/zeiss-mmz-g-ppt-measurement-heavy-part.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-ppt-measurement-heavy-part.jpg/_jcr_content/renditions/original.image_file.1440.810.0,180,1920,1260.file/zeiss-mmz-g-ppt-measurement-heavy-part.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-ppt-measurement-heavy-part.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,180,1920,1260.file/zeiss-mmz-g-ppt-measurement-heavy-part.jpg"})
![ZEISS MMZ G bei Three M Tool and Machine]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-three-m-tool-and-machine.jpg/_jcr_content/renditions/original.image_file.100.67.file/zeiss-mmz-g-three-m-tool-and-machine.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-three-m-tool-and-machine.jpg/_jcr_content/renditions/original.image_file.360.240.file/zeiss-mmz-g-three-m-tool-and-machine.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-three-m-tool-and-machine.jpg/_jcr_content/renditions/original.image_file.768.512.file/zeiss-mmz-g-three-m-tool-and-machine.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-three-m-tool-and-machine.jpg/_jcr_content/renditions/original.image_file.1024.683.file/zeiss-mmz-g-three-m-tool-and-machine.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-three-m-tool-and-machine.jpg/_jcr_content/renditions/original.image_file.1280.853.file/zeiss-mmz-g-three-m-tool-and-machine.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-three-m-tool-and-machine.jpg/_jcr_content/renditions/original.image_file.1440.960.file/zeiss-mmz-g-three-m-tool-and-machine.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/large-cmms/mmz-g/zeiss-mmz-g-three-m-tool-and-machine.jpg/_jcr_content/renditions/original./zeiss-mmz-g-three-m-tool-and-machine.jpg"} "ZEISS MMZ G bei Three M Tool and Machine")

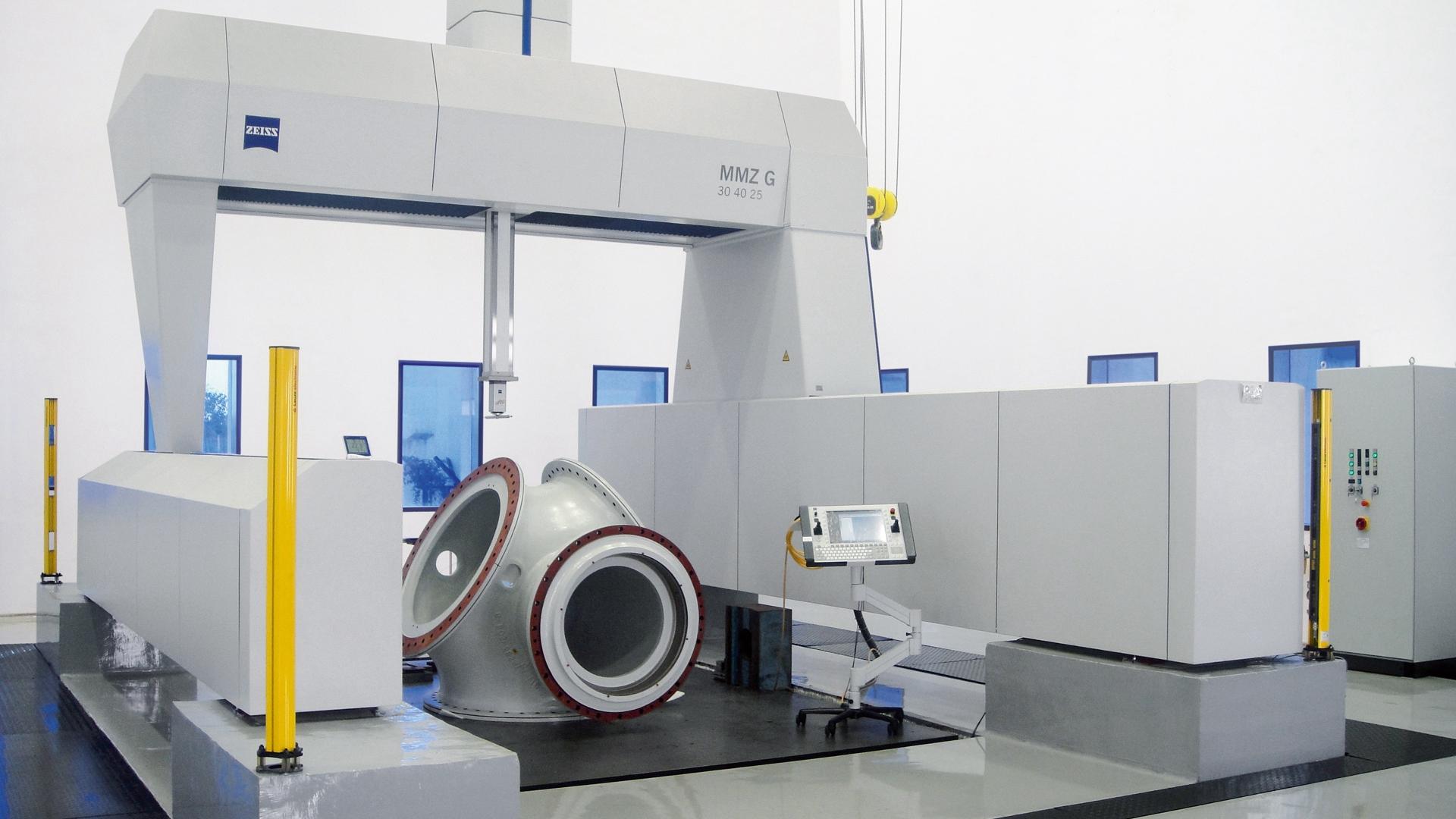

Robust sehr schwere Werkstücke messen
- Resistent bei rauen Umgebungsbedingungen für minimale Anforderungen an den Messraum
- Große Lagerabstände und stabile Portalbauweise für eine sehr hohe Scanning Performance
- Werkstückgewicht nur durch die Fundamentdicke begrenzt
Mit der Koordinatenmessmaschine von ZEISS konnten wir der Konkurrenz den Rang ablaufen und sind unserer Unternehmensvision wieder ein Stück näher gekommen.

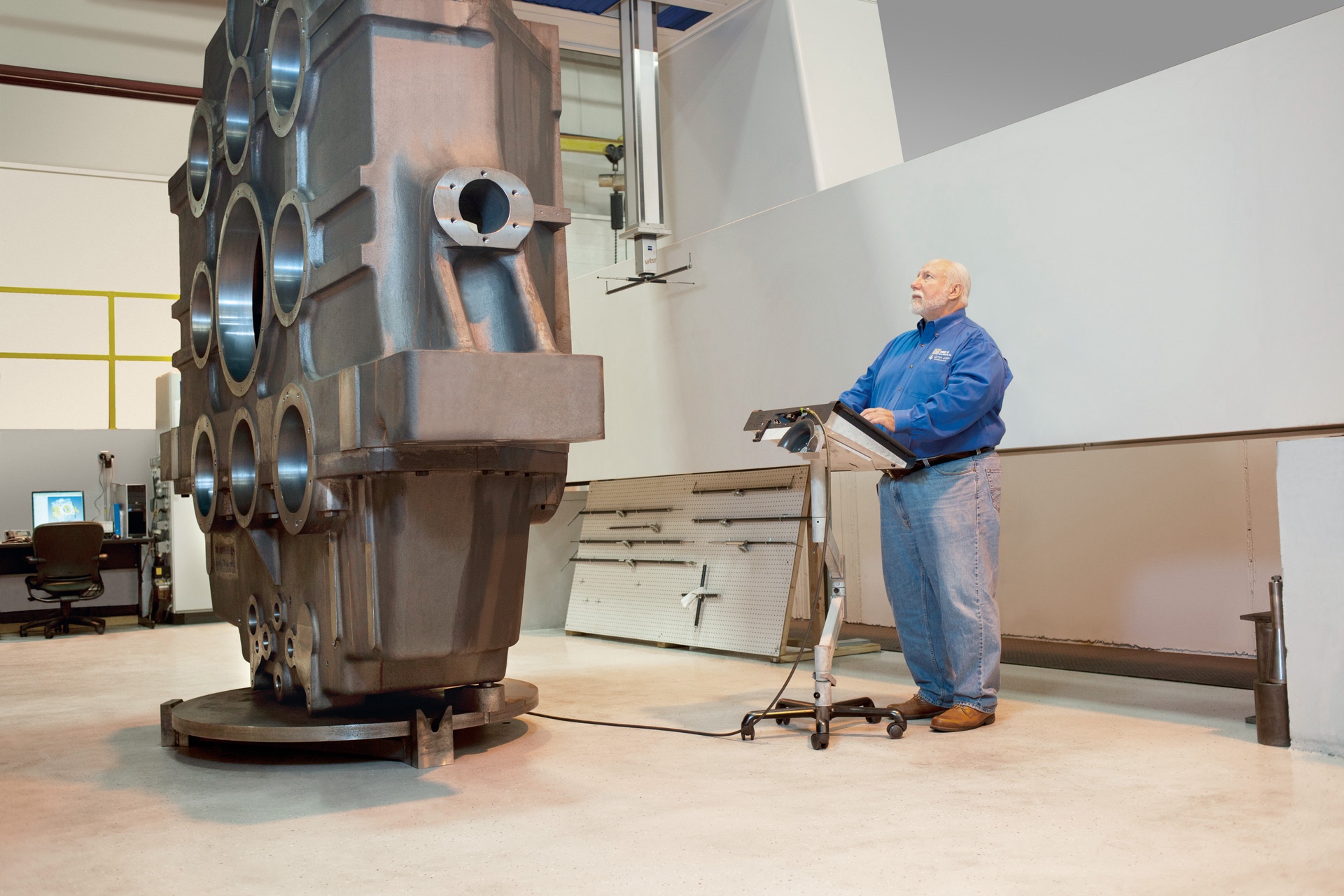

Three-M Tool und ZEISS MMZ G
Technische Daten ZEISS MMZ G
|
|
|
|
|---|---|---|
|
Längenmessabweichung |
MPE_E150 |
ab 2.2 + L/400 μm |
|
Einzeltaster-Antastabweichung |
MPE_PFTU |
ab 2.0 μ |
|
Scanning-Antastabweichung |
MPE_THP/tau |
ab 2.8 μ / 62 s |
|
Formmessabweichung |
MPE RONt |
ab 2.0 μm |

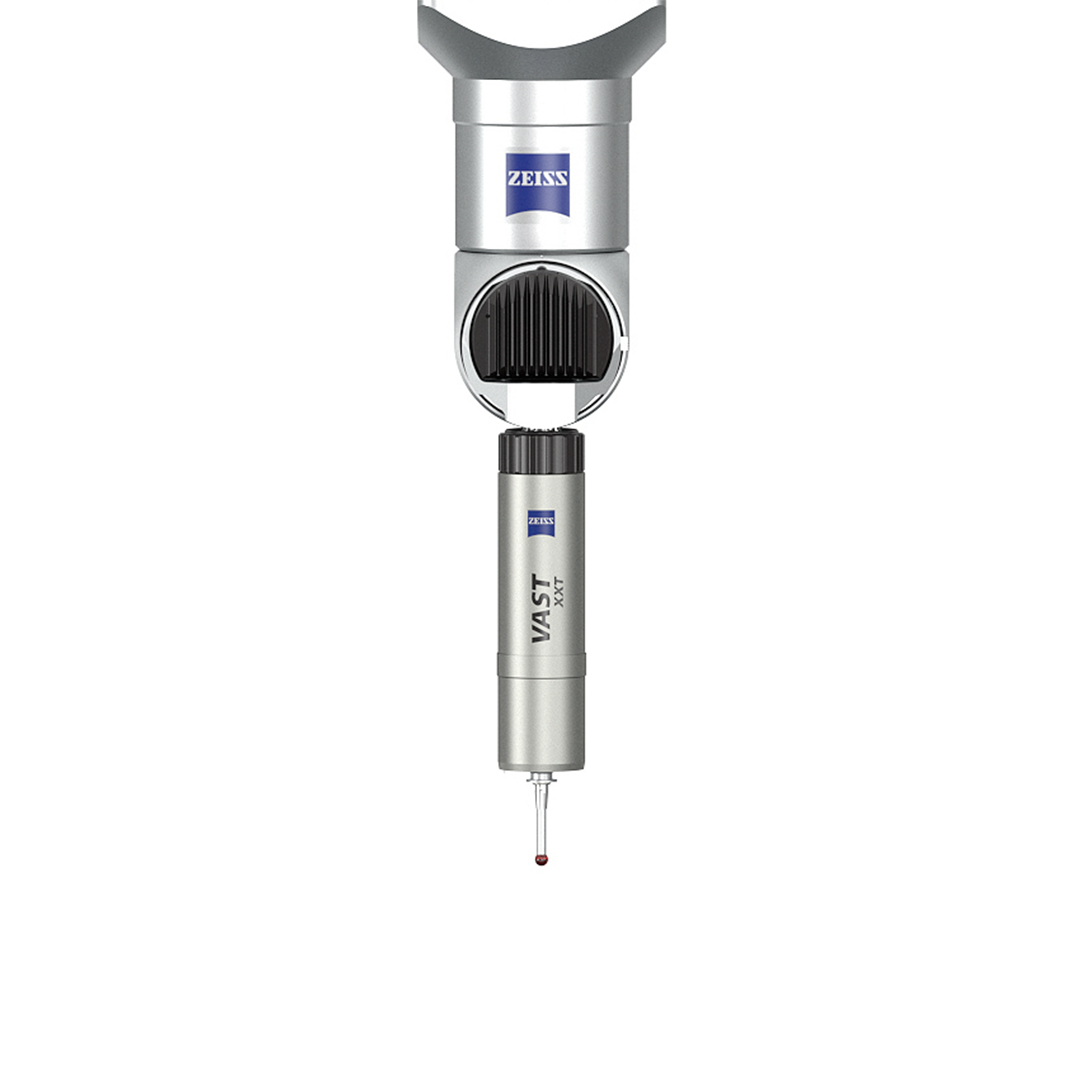

![VAST XXT]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/scanning-probes/vast-xxt/vast-xxt-rds-product-picture.png/_jcr_content/renditions/original.image_file.100.100.420,0,1500,1080.file/vast-xxt-rds-product-picture.png","small":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/scanning-probes/vast-xxt/vast-xxt-rds-product-picture.png/_jcr_content/renditions/original.image_file.360.360.420,0,1500,1080.file/vast-xxt-rds-product-picture.png","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/scanning-probes/vast-xxt/vast-xxt-rds-product-picture.png/_jcr_content/renditions/original.image_file.768.768.420,0,1500,1080.file/vast-xxt-rds-product-picture.png","large":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/scanning-probes/vast-xxt/vast-xxt-rds-product-picture.png/_jcr_content/renditions/original.image_file.1024.1024.420,0,1500,1080.file/vast-xxt-rds-product-picture.png","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/scanning-probes/vast-xxt/vast-xxt-rds-product-picture.png/_jcr_content/renditions/original.image_file.1080.1080.420,0,1500,1080.file/vast-xxt-rds-product-picture.png","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/scanning-probes/vast-xxt/vast-xxt-rds-product-picture.png/_jcr_content/renditions/original.image_file.1080.1080.420,0,1500,1080.file/vast-xxt-rds-product-picture.png","max":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/scanning-probes/vast-xxt/vast-xxt-rds-product-picture.png/_jcr_content/renditions/original.image_file.1080.1080.420,0,1500,1080.file/vast-xxt-rds-product-picture.png"} "VAST XXT")
![LineScan]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/linescan/zeiss-linescan-product-picture.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-linescan-product-picture.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/linescan/zeiss-linescan-product-picture.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-linescan-product-picture.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/linescan/zeiss-linescan-product-picture.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-linescan-product-picture.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/linescan/zeiss-linescan-product-picture.jpg/_jcr_content/renditions/original.image_file.1024.1024.file/zeiss-linescan-product-picture.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/linescan/zeiss-linescan-product-picture.jpg/_jcr_content/renditions/original.image_file.1280.1280.file/zeiss-linescan-product-picture.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/linescan/zeiss-linescan-product-picture.jpg/_jcr_content/renditions/original.image_file.1440.1440.file/zeiss-linescan-product-picture.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/linescan/zeiss-linescan-product-picture.jpg/_jcr_content/renditions/original./zeiss-linescan-product-picture.jpg"} "LineScan")

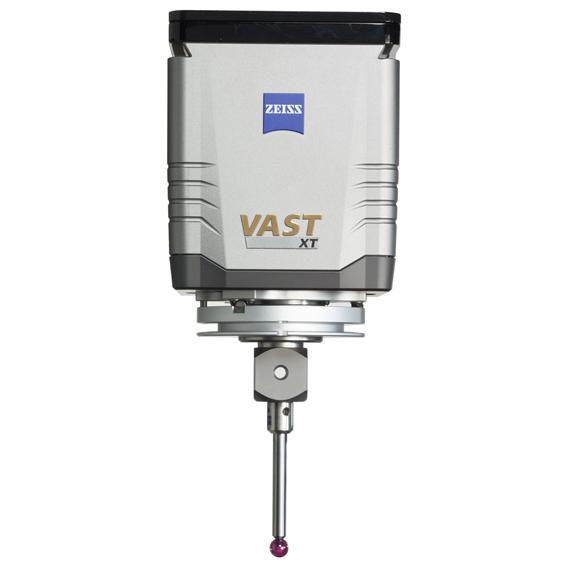

![VAST XT gold]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xt-gold/zeiss-vast-xt-gold-product-image.jpg/_jcr_content/renditions/original.image_file.100.100.686,117,1253,684.file/zeiss-vast-xt-gold-product-image.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xt-gold/zeiss-vast-xt-gold-product-image.jpg/_jcr_content/renditions/original.image_file.360.360.686,117,1253,684.file/zeiss-vast-xt-gold-product-image.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xt-gold/zeiss-vast-xt-gold-product-image.jpg/_jcr_content/renditions/original.image_file.567.567.686,117,1253,684.file/zeiss-vast-xt-gold-product-image.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xt-gold/zeiss-vast-xt-gold-product-image.jpg/_jcr_content/renditions/original.image_file.567.567.686,117,1253,684.file/zeiss-vast-xt-gold-product-image.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xt-gold/zeiss-vast-xt-gold-product-image.jpg/_jcr_content/renditions/original.image_file.567.567.686,117,1253,684.file/zeiss-vast-xt-gold-product-image.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xt-gold/zeiss-vast-xt-gold-product-image.jpg/_jcr_content/renditions/original.image_file.567.567.686,117,1253,684.file/zeiss-vast-xt-gold-product-image.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xt-gold/zeiss-vast-xt-gold-product-image.jpg/_jcr_content/renditions/original.image_file.567.567.686,117,1253,684.file/zeiss-vast-xt-gold-product-image.jpg"} "VAST XT gold")

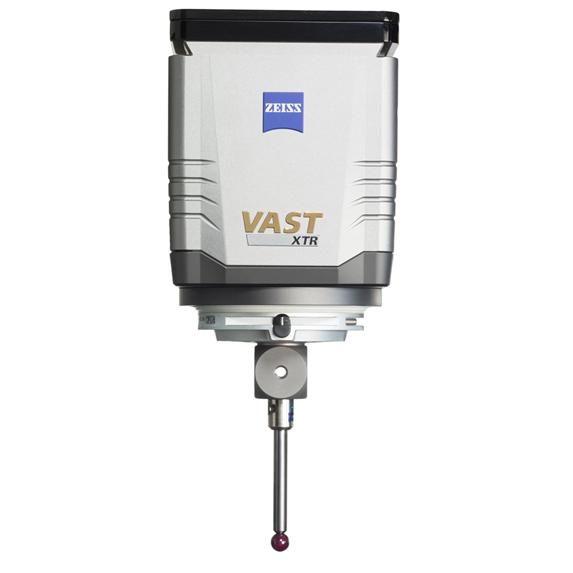

![ZEISS VAST XTR gold mit integrierter Rotationsachse]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xtr-gold/zeiss-vast-xtr-gold-product-image.jpg/_jcr_content/renditions/original.image_file.100.100.689,126,1262,699.file/zeiss-vast-xtr-gold-product-image.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xtr-gold/zeiss-vast-xtr-gold-product-image.jpg/_jcr_content/renditions/original.image_file.360.360.689,126,1262,699.file/zeiss-vast-xtr-gold-product-image.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xtr-gold/zeiss-vast-xtr-gold-product-image.jpg/_jcr_content/renditions/original.image_file.573.573.689,126,1262,699.file/zeiss-vast-xtr-gold-product-image.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xtr-gold/zeiss-vast-xtr-gold-product-image.jpg/_jcr_content/renditions/original.image_file.573.573.689,126,1262,699.file/zeiss-vast-xtr-gold-product-image.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xtr-gold/zeiss-vast-xtr-gold-product-image.jpg/_jcr_content/renditions/original.image_file.573.573.689,126,1262,699.file/zeiss-vast-xtr-gold-product-image.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xtr-gold/zeiss-vast-xtr-gold-product-image.jpg/_jcr_content/renditions/original.image_file.573.573.689,126,1262,699.file/zeiss-vast-xtr-gold-product-image.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-xtr-gold/zeiss-vast-xtr-gold-product-image.jpg/_jcr_content/renditions/original.image_file.573.573.689,126,1262,699.file/zeiss-vast-xtr-gold-product-image.jpg"} "VAST XTR gold - Punktet mit Dynamik")

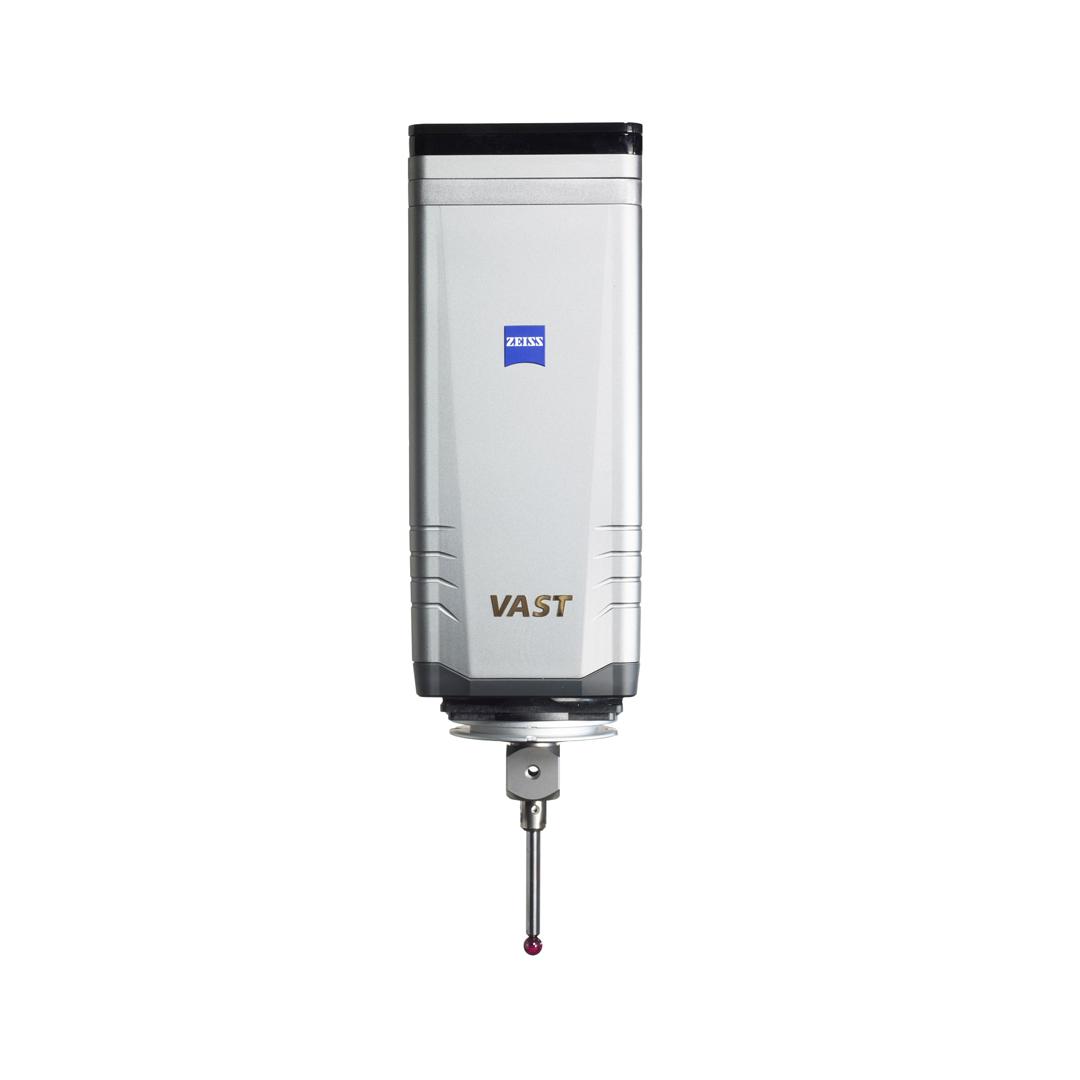

![VAST gold]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-gold/zeiss-vast-gold-product-image.jpg/_jcr_content/renditions/original.image_file.100.100.438,0,1518,1080.file/zeiss-vast-gold-product-image.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-gold/zeiss-vast-gold-product-image.jpg/_jcr_content/renditions/original.image_file.360.360.438,0,1518,1080.file/zeiss-vast-gold-product-image.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-gold/zeiss-vast-gold-product-image.jpg/_jcr_content/renditions/original.image_file.768.768.438,0,1518,1080.file/zeiss-vast-gold-product-image.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-gold/zeiss-vast-gold-product-image.jpg/_jcr_content/renditions/original.image_file.1024.1024.438,0,1518,1080.file/zeiss-vast-gold-product-image.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-gold/zeiss-vast-gold-product-image.jpg/_jcr_content/renditions/original.image_file.1080.1080.438,0,1518,1080.file/zeiss-vast-gold-product-image.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-gold/zeiss-vast-gold-product-image.jpg/_jcr_content/renditions/original.image_file.1080.1080.438,0,1518,1080.file/zeiss-vast-gold-product-image.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/cmm/probes-and-sensors/tactile-probes/active-scanning-probes/vast-gold/zeiss-vast-gold-product-image.jpg/_jcr_content/renditions/original.image_file.1080.1080.438,0,1518,1080.file/zeiss-vast-gold-product-image.jpg"} "VAST gold")
