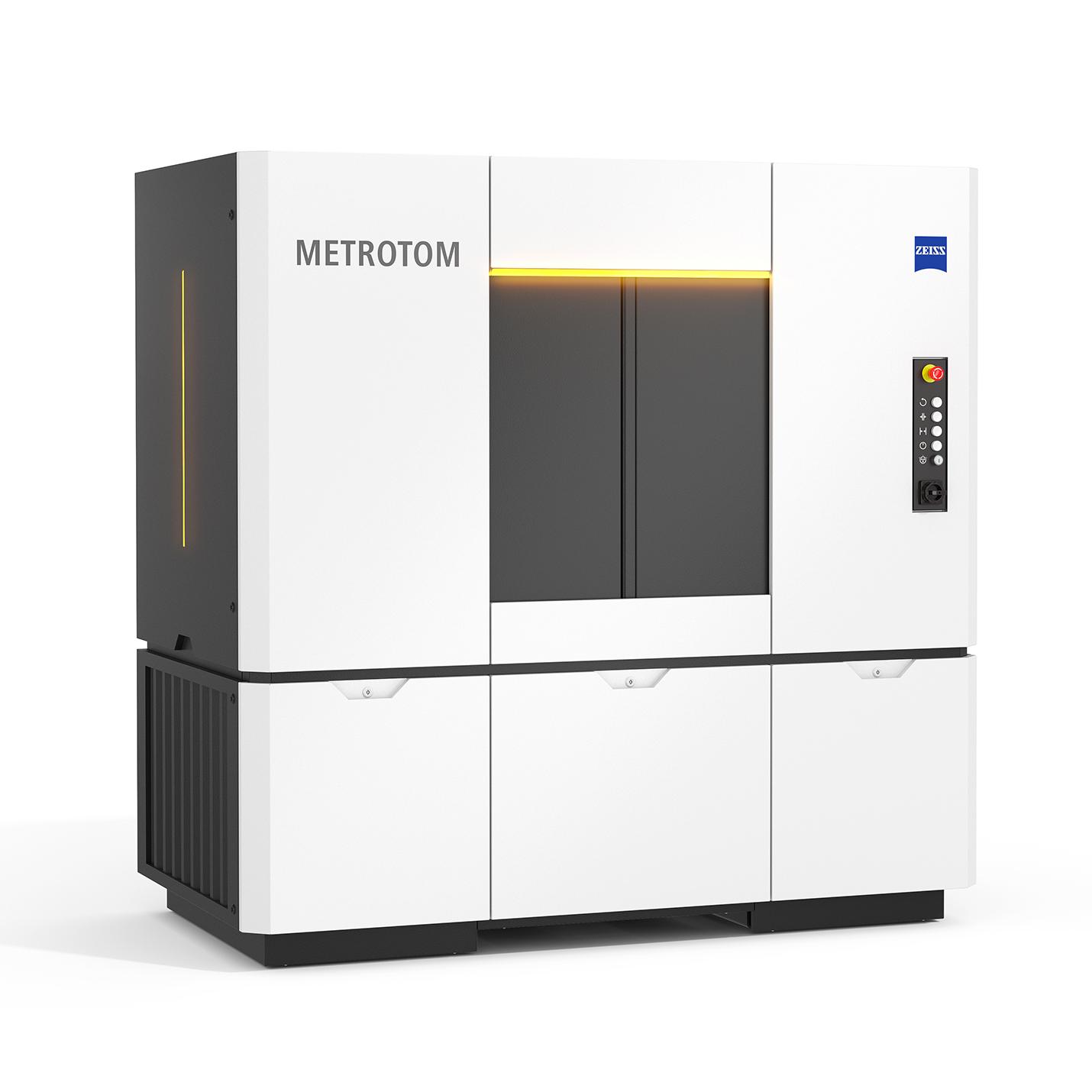

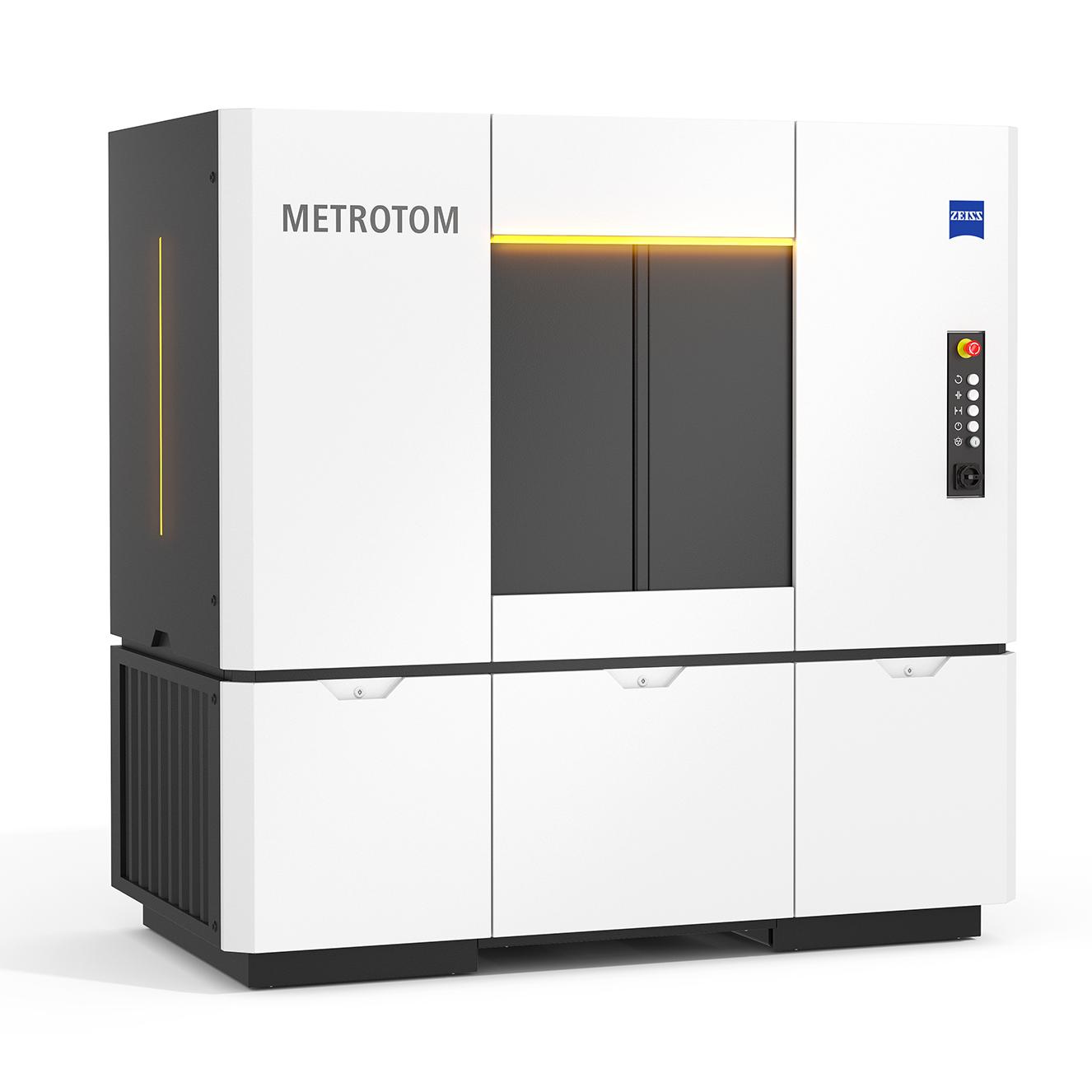

METROTOM 6 scout
The powerhouse of resolution. Für CT-Inspektion und -Messtechnik
ZEISS METROTOM 6 scout digitalisiert komplexe Bauteile, einschließlich interner Geometrien, auf höchstem Detailniveau. Das Ergebnis ist ein vollständiges 3D-Abbild für Form- und Lageanalysen oder Soll-Ist-Vergleiche. Das Messtechnik-CT-System ist die ideale Wahl für die Digitalisierung von kleinen Kunststoffteilen.
Hochauflösende Messungen von kleinen Kunststoffteilen
ZEISS METROTOM 6 scout ist die perfekte Lösung für die zerstörungsfreie Prüfung und hochgenaue 3D-Messung von Bauteilen. Die fortschrittliche Messleistung und die nahtlose Integration in bestehende Qualitätssicherungsprozesse gewährleisten maximale Zuverlässigkeit und Präzision bei der Fehlererkennung.
![Aufdecken, was mit anderen Technologien verborgen bleibt]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.100.75.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.360.270.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.768.576.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg"} "Aufdecken, was mit anderen Technologien verborgen bleibt")
![Aufdecken, was mit anderen Technologien verborgen bleibt]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.100.75.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.360.270.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.768.576.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg"} "Aufdecken, was mit anderen Technologien verborgen bleibt")

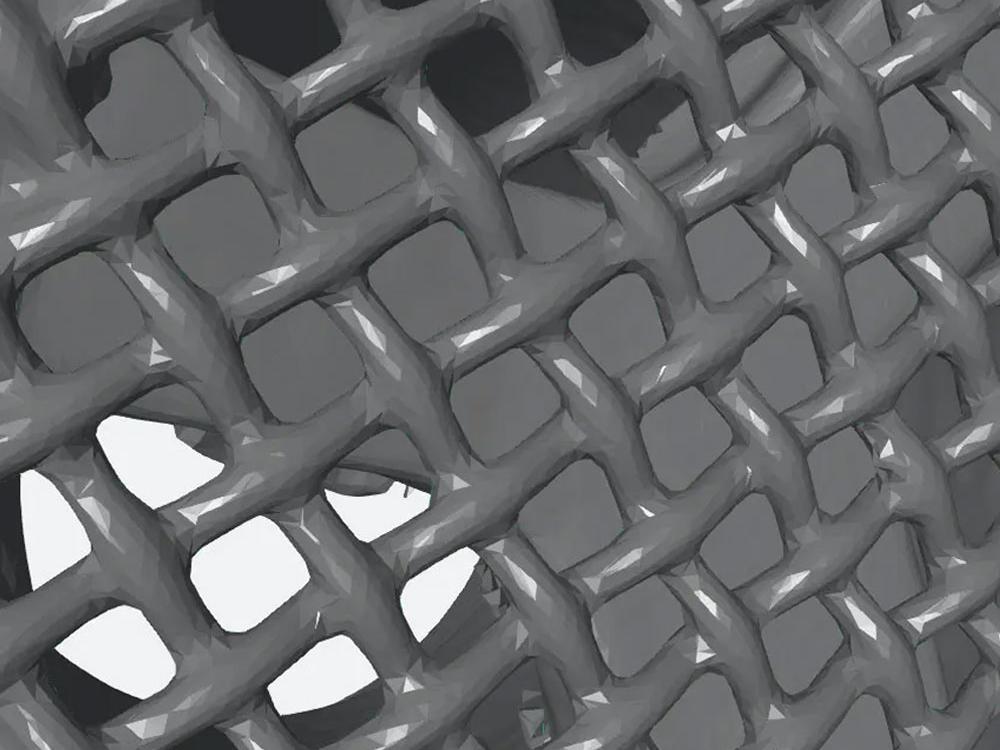

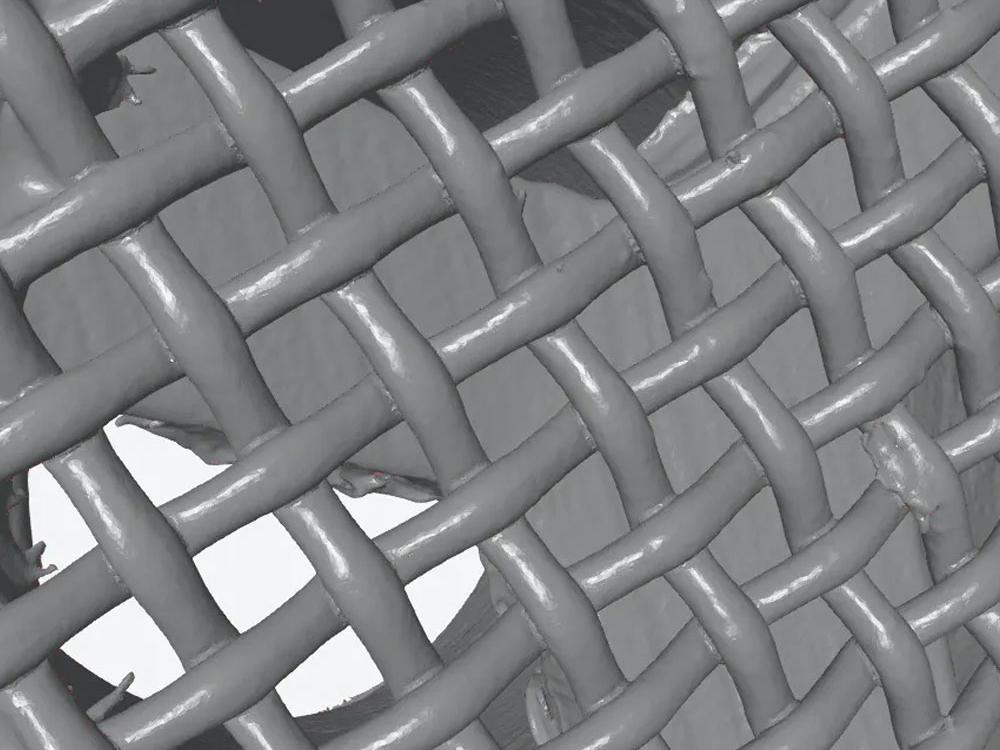

Aufdecken, was mit anderen Technologien verborgen bleibt
Auflösung
ZEISS METROTOM 6 scout erreicht beim Scannen eines Bauteils eine hervorragende Detailschärfe: Zum einen, weil das System einen hochauflösenden 3k-Röntgendetektor zur Erfassung der Messdaten nutzt, zum anderen, weil jedes Teil in der bestmöglichen Messposition und damit immer mit der höchstmöglichen Auflösung gemessen wird. Das Ergebnis ist auf dem Bild zu sehen: Links Messdaten, die mit dem ZEISS METROTOM 6 scout erzeugt wurden und rechts der übliche Standard.
![Garantiert hohe Präzision]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-metrotom-6-tileteaser.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-metrotom-6-tileteaser.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-metrotom-6-tileteaser.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg"} "Garantiert hohe Präzision")

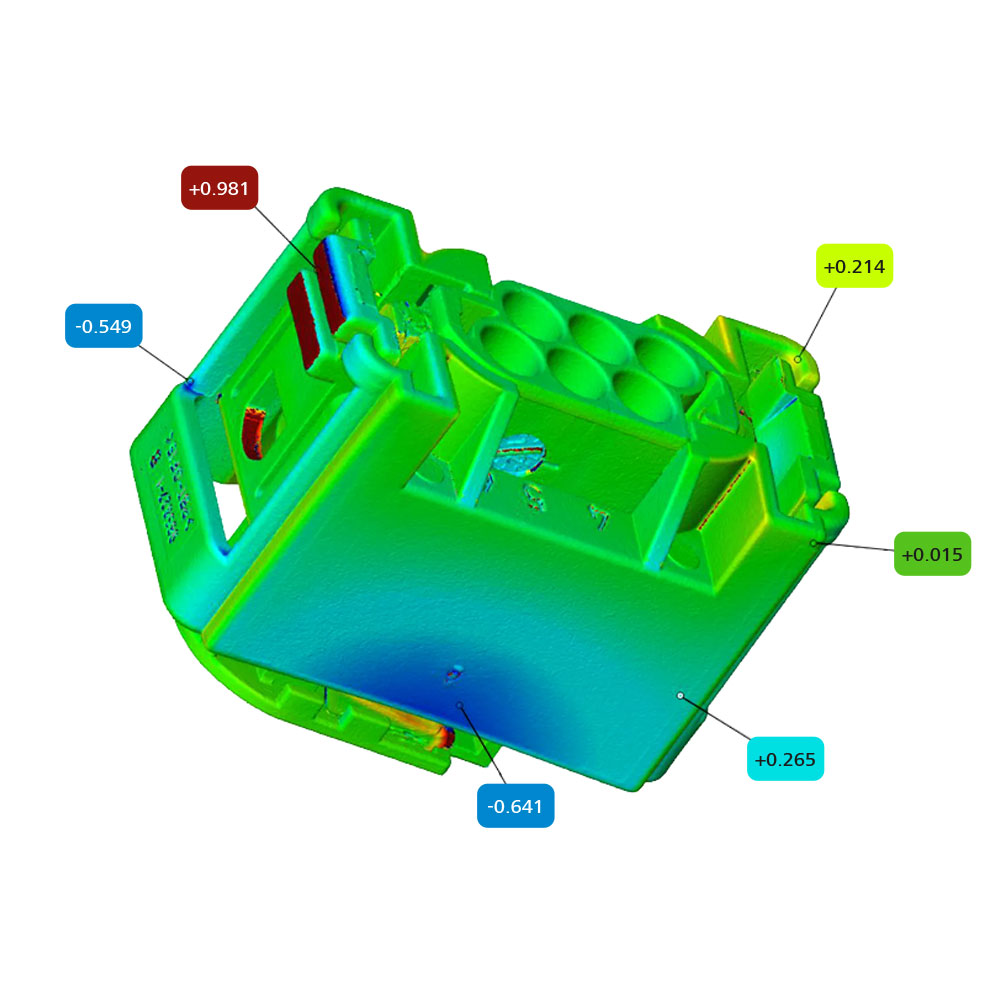

Garantiert hohe Präzision
Genauigkeit
Der ZEISS METROTOM 6 scout nutzt intelligente mathematische Prinzipien, um seine präzisen 3D-Messdaten zu erzeugen. Während des gesamten Messvorgangs kombiniert das System perfekt aufeinander abgestimmte Algorithmen mit der digitalen Modellierung des Messraums. Es bietet zudem eine optimierte mechanische Stabilität für alle messrelevanten Komponenten. Die Quintessenz: Anhand der Messergebnisse können Sie die Qualität eines Bauteils zuverlässig und hochgenau bewerten und weitere Analysen durchführen.
Zentriert Teile automatisch
Eine 5-Achs-Kinematik mit integriertem Zentriertisch positioniert das Teil optimal im Messvolumen. Das Bauteil wird einfach auf dem Drehtisch positioniert - den Rest erledigt die Software.
Alles in einer Software
![Intuitive and powerful]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.100.67.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.360.240.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.768.512.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.1000.667.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.1000.667.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.1000.667.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.1000.667.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg"} "Intuitive and powerful")
-
Eine Lösung für alle Prozessschritte
Eine einzige Software, ZEISS INSPECT X-Ray, vereint die Steuerung des Systems und die messtechnische Auswertung der Daten. Es sind also keine zusätzliche Software oder Zwischenschritte erforderlich.
Dies gewährleistet einen nahtlosen Prozess und vereinfacht den Arbeitsablauf von der Rohdatenerfassung über die Inspektion bis zum Messbericht erheblich.
-

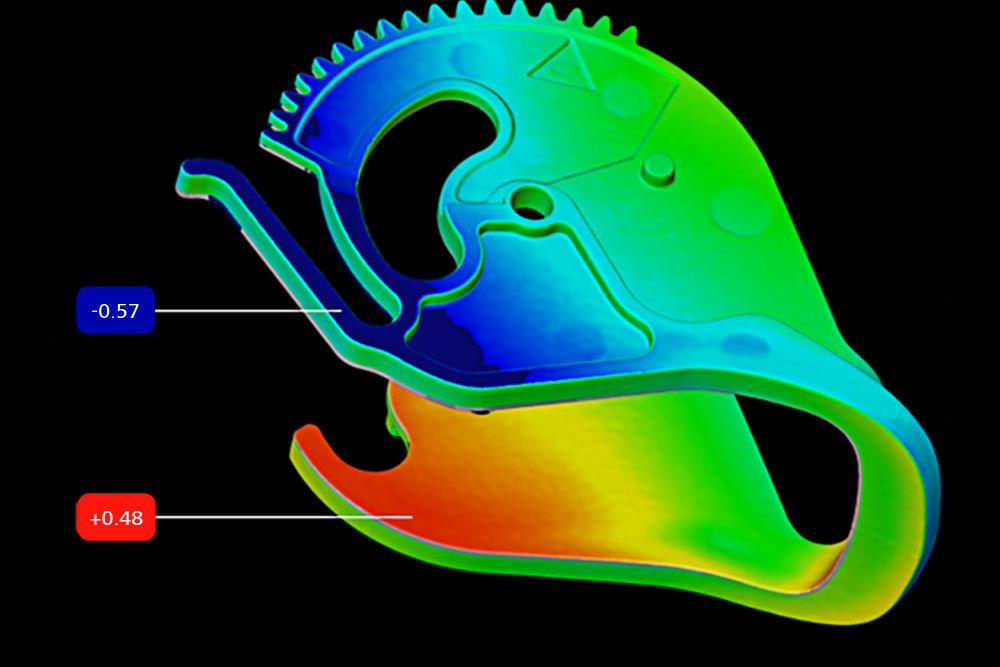

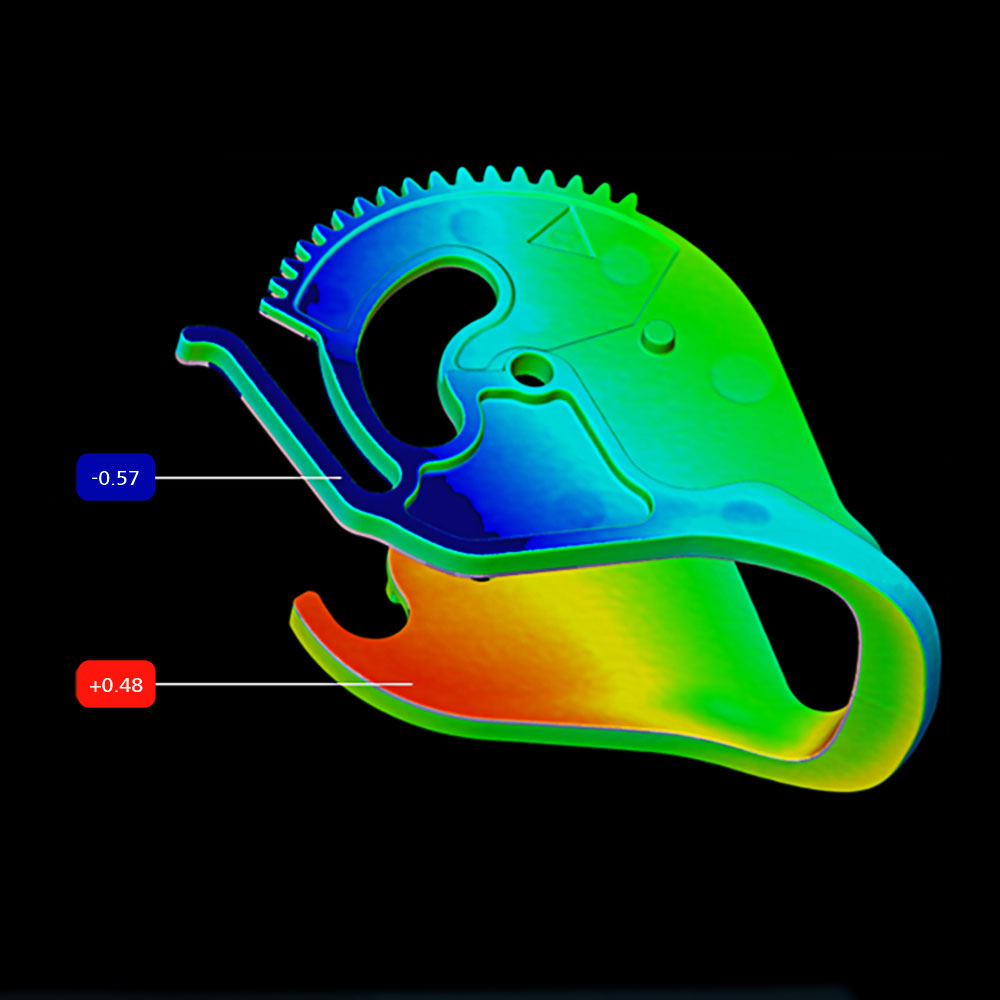

Intuitiv und leistungsstark
ZEISS INSPECT X-Ray bietet eine vollständige 3D-Analyse von CT-Daten zur Bewertung der Teilequalität und zur Optimierung Ihres Fertigungsprozesses. Einzelne Schnittbilder ermöglichen es Ihnen, das Volumen Schicht für Schicht zu betrachten und selbst kleinste Details und Defekte zu erkennen. Erkannte Fehler können detailliert analysiert und automatisch nach verschiedenen Kriterien bewertet werden. Darüber hinaus können Sie Volumendaten von mehreren Komponenten in ein Projekt laden, eine Trendanalyse durchführen und die Analyse mit CAD-Daten vergleichen. Alle Messergebnisse werden dokumentiert und in einem übersichtlichen Bericht zusammengefasst. Intuitive Bedienung und hohe Leistung: Die Analyse von CT-Daten war noch nie so einfach!
![Eine Lösung für alle Prozessschritte]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-metrotom-6-scout-inspect.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-metrotom-6-scout-inspect.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-metrotom-6-scout-inspect.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect.jpg"} "Eine Lösung für alle Prozessschritte")
![Intuitiv und leistungsstark]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect-x-ray.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect-x-ray.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect-x-ray.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect-x-ray.jpg"} "Intuitiv und leistungsstark")
-
ZEISS METROTOM 800 225 kV HR
Dieser Hochgeschwindigkeits-CT ist die ideale Wahl für das schnelle und genaue Scannen dichterer Teile mittlerer bis großer Abmessungen.
-

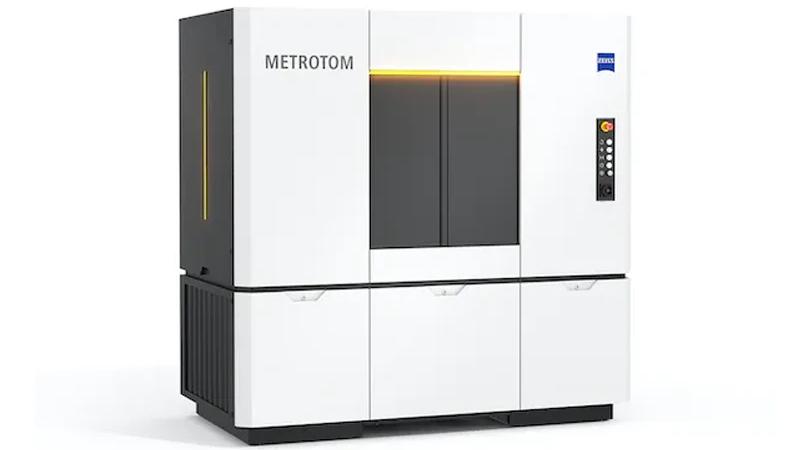

ZEISS METROTOM 6 scout
ZEISS METROTOM 6 scout zeichnet sich durch ultrahochauflösendes Scannen von Kunststoffteilen dank eines 3k-Röntgendetektors aus.
-

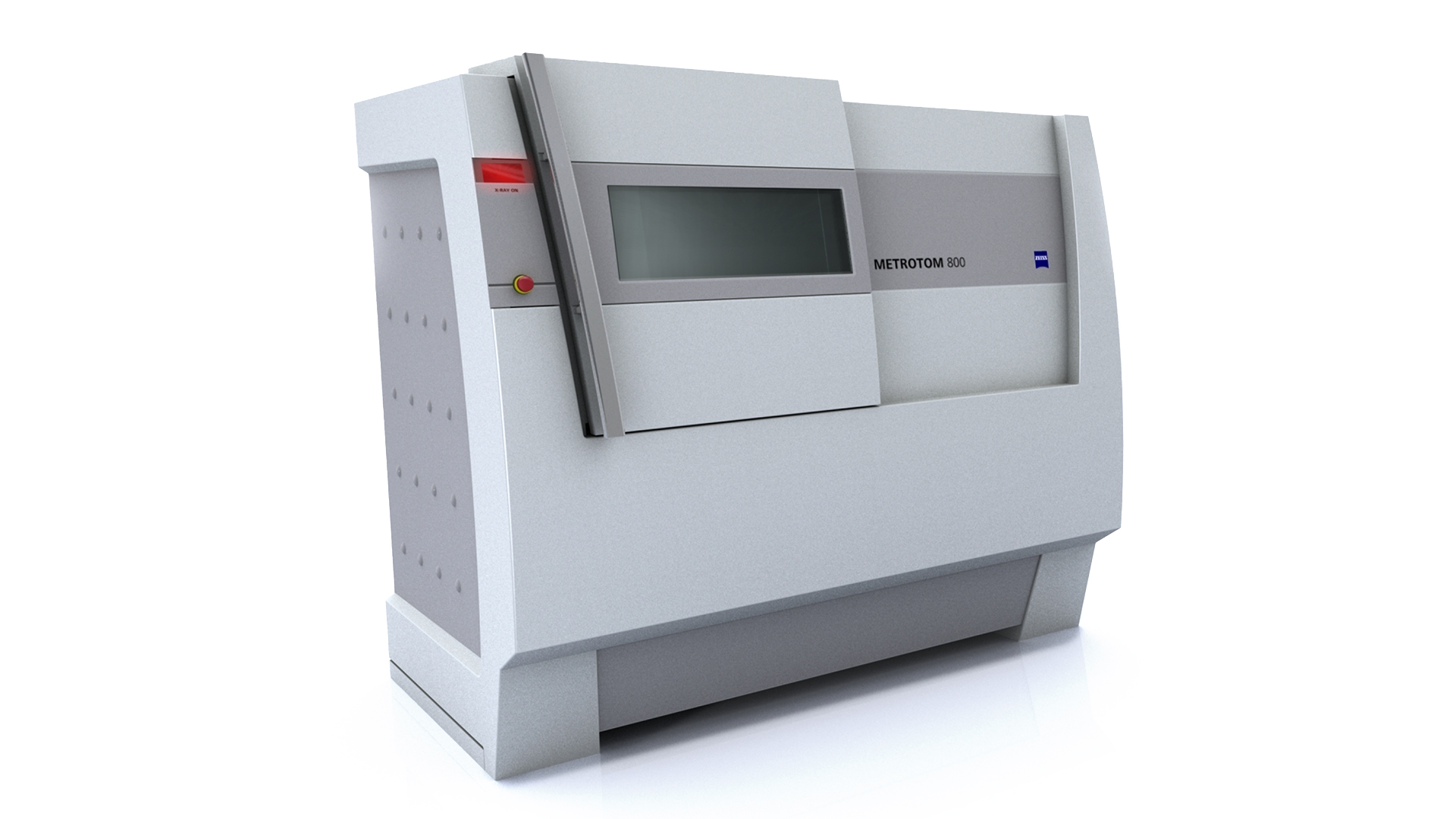

ZEISS METROTOM 800 130 kV
Dieser messtechnisch qualifizierte CT verfügt über eine kleine Stellfläche und eignet sich für die Messung mittelgroßer Kunststoffteile mit hoher Genauigkeit.
![ZEISS METROTOM 1500]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.100.56.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.360.203.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.768.432.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg"} "ZEISS METROTOM 1500")
![ZEISS METROTOM 800 225 kV HR]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.100.56.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.360.203.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.768.432.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg"} "ZEISS METROTOM 800 225 kV HR")
![ZEISS METROTOM 6 scout]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.100.56.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.360.203.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.768.432.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg"} "ZEISS METROTOM 6 scout")
![ZEISS METROTOM 800 130 kV]({"xsmall":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","small":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","medium":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","large":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","xlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","xxlarge":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","max":"https://www.zeiss.de/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original./zeiss-3d-x-ray-metrotom-800-130-800-600.jpg"} "ZEISS METROTOM 800 130 kV")
Technische Daten
Merkmal
|
Röntgenstrahlenquelle |
225 kV |
|---|---|
|
Röntgen-Detektor |
Auflösung: 3008 x 2512 Pixel |
|
Messbereich |
d: 240 mm |
|
Voxel-Größe |
2 µm - 80 µm |
|
Abmessungen |
H. 2210 mm |
|
Gewicht |
4800 kg |
|
Anwendungsbereich |
Erstmusterprüfung, Werkzeugkorrektur, Prüfung während der laufenden Produktion |
|
Merkmale der Inspektion |
Innere Strukturen, Wandstärke, Materialfehler, Poren und Lunker |
|
Messaufgaben |
Analyse von Form- und Lageabweichungen, Soll-Ist-Vergleich, Montageanalyse |
